CONSTRUCTION

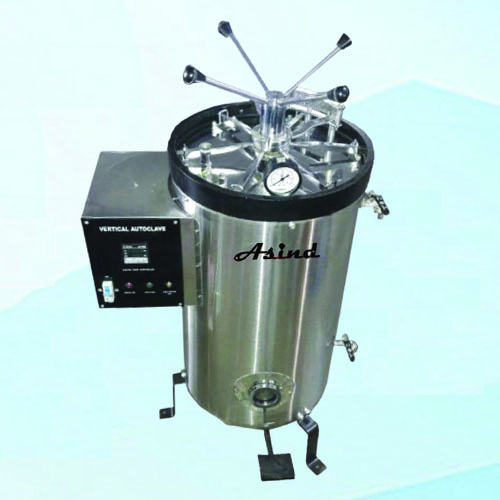

This is double walled unit with Inner and outer wall both made of Stainless Steel. Lid is made of thick machined stainless steel plate tightened with radial locking system. Fitted with neoprene rubber gasket. All system is hydraulically tested up to 40 Psi, as a safety measure. Fitted with slandered accessories such as water level indicator, pressure gauge, steam release cock, spring loaded safety valve, industrial grade heating element and Semi-Automatic Digital Controller with AUTO-TIME CONTROL SYSTEM. After the set temperature is attained the timer starts automatically and on completion of set countdown / up time the supply to heaters is cut -off and the system sounds a buzzer alerting user that the cycle is over. All internal joints are arc welded ground and polished to give crevice free internals. Supplied complete with SS basket, cord and plug to work on 220/230 Volts A.C supply.
CONTROL PANEL
• Processor based Controller with time and temperature settable by user.
• Operating range from 15 to 22 psi pressure. (adjustable)
• Class ‘A’ Platinum (Pt-100) sensor, enabling precise and accurate monitoring in 0.1OC resolution and + 1OC accuracy.
• End of cycle buzzer to alert the user.
• Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
• Industrial grade energy efficient heaters.
| Inner Dimensions (Dia x Height) | 250×450mm | 300×500mm | 350×550mm | 400×600mm | 450×600mm | 550×750mm |
|---|---|---|---|---|---|---|
| Dimensions of Basket (Dia x Height) | 225×300mm | 275×350mm | 325×400mm | 375×450mm | 425×450mm | 525×600mm |
| Capacity | 22 ltrs | 40 ltrs | 50 ltrs | 78 ltrs | 98 ltrs | 187 ltrs |
| Heater Load | 1.5 KW | 2.0 KW | 3.0 KW | 4.0 KW | 4.0 KW | 5.0 KW |
| Gasket | Made of neoprene Rubber | |||||
| Controller | Microprocessor based digital temperature Indicator-cum-Controller | |||||
| Display | Digital LED with Set Value (SV) and Process Value (PV) | |||||
| Buzzer | Alarm for cycle end | |||||
| Pressure vessel | Stainless Steel (SS-304 grade) | |||||
| External Wall | Stainless Steel (SS-304 grade) | |||||
| Top Lid | Stainless Steel | |||||
| Basket | Stainless Steel (SS-304 grade) | |||||
| Sterilizing Pressure | Up to 20psi | |||||
| Operating Pressure | From 15 to 22psi (Adjustable) | |||||
| Pressure Gauge | 30 psi | |||||
| Exhaust Supply | Manually through a exhaust valve | |||||
| Power Supply | 220/230Volts A.C. Supply, 50Hz | |||||
Optional:-
• PID controller
• Low / High water cut-off device
• Digital alarm
• Temperature chart recorder
• Dot Matrix Printer
• RS 232 / USB PC Connection Port
• NABL certification
• Stainless Steel wire mesh carrier
• Dressing drum
• Sterilization indicator tape
• Autoclave bags
• PLC control system
• IQ / OQ / PQ Documentation
