CONSTRUCTION:-

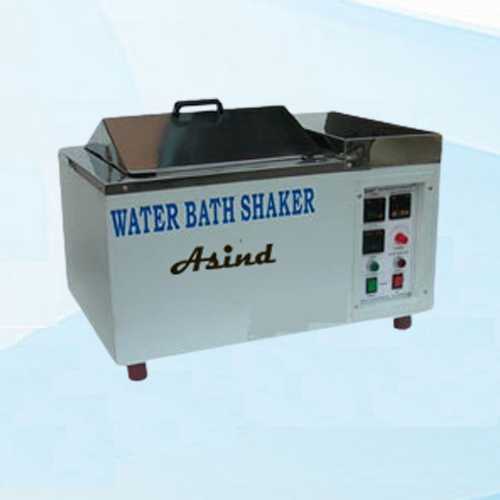

It is a double walled unit inside made of thick S.S. Steel (SS-304 grade) and outer is made of Mild steel sheet duly powder coated. The lid is made of S.S steel sheet prevents falling of condensed water droplets on the specimens. Heating is achieved through a immersion type heater and the temperature is controlled a geared variable speed meter. Shaking speed range is between 40 to 140 cycles per minute. The shaking tray can be either hold test tubes or flask of 25ml or 50ml or 100ml or 250ml or 500ml or 1000ml (as per order of user). Supplied complete with one shaking tray, cover, cord and plug, to work on 220/230 volts A.C supply. Available with heating arrangement only (having temperature range from ambient to 100˚C).
TECHNICAL SPECIFICATION INFORMATION:-
| Internal Dimensions (LXBXD) | 275x275x75 mm | 275x275x150 mm | 405x300x150 mm |
|---|---|---|---|
| Capacity | 8 ltrs | 12 ltrs | 18 ltrs |
| Heating Load | 2.5 KW (2.0 KW + 0.5 KW) | ||
| Temperature Range | Ambient to 100˚C | ||
| Controller | Microprocessor based PID Digital Temperature Indicator-cum-Controller | ||
| Display | Digital LED with set value (SV) process value (PV) | ||
| Heater type | Industrial grade immersion heater | ||
| Temperature Accuracy | ±0.5 ˚C | ||
| Temperature Sensor | RTD (Pt-100) | ||
| Shaking Speed | 40 to 140 cycles/minute | ||
| Diffuser Shelf | Heater protective perforated cover made of stainless steel | ||
| Regulator | Solid state electronic relay with protective heat sink | ||
| Power supply | 220/230 volts A.C. Supply,50 Hz | ||
| Optional: | • Microprocessor based PID Digital Temperature Indicator-cum-Controller with Automatic Digital Minute Timer which starts automatically when set/desired value of temperature is attained. When the set time period is over the heaters switched off automatically and unit sounds a Buzzer alerting the user that the process is complete. • Full body is made of S.S. Sheet (SS-304 grade). |
||
