CONSTRUCTION

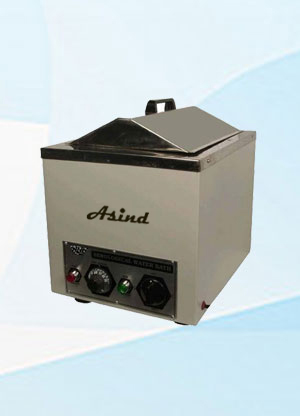

Serological water bath with double walled construction complete inner chamber is made of highly polished stainless steel (SS-304) and outer body is made of Mild steel sheet, duly powder coated. Gap between the walls is filled with special grade wool for proper insulation to avoid heat losses. The water bath is provided with drain plug to facilitate easy empting and cleaning of the inner chamber whenever necessary. Test tube rack can be provided on requirement. Temperature is controlled by Bi-metallic capillary type thermostat / Digital temperature controller-cum-indicator/ or Microprocessor based PID controller (as per order) temperature range from ambient to 100˚C with an accuracy of ± 0.5˚C. supplied complete with S.S. Cover, ON/OFF switch, two pilot lamps, switch cord and plug to operate on 220/230 volts, single phase A.C Supply.
SPECIFICATION
| Inner Dimensions (LXWXD) | 300X250X175 mm | 330x300x175 mm | 455x300x175 mm | 605x300x175 mm |
|---|---|---|---|---|
| Capacity | 14 ltrs | 18 ltrs | 25 ltrs | 32 ltrs |
| Racks | 2 | 4 | 6 | 8 |
| Temperature Controller | Bi- Metallic Hydraulic type Capillary Thermostat | |||
| Control Panel | Temperature controller , with Mains and load indicator, Main Switch | |||
| Housing Material | CRC/Mild Steel Sheet with duly Powder coated | |||
| Interior Tank | S. Steel 304 grade water tank duly sealed leak proof | |||
| Temperature Range | From ambient to 100 ËšC + 0.5ËšC | |||
| Insulation | Glasswool / Mineral wool | |||
| Stirring Device (OPTION) | Available with or without stirring arrangement with the help of FHP stirrer (as Ordered) | |||
| Temperature Display | Thru L-shaped prismatic thermometer (Not supplied with the unit) | |||
| Diffuser Shelf | Heater protective perforated cover made of Stainless Steel | |||
| Power supply | 220/230 volts A.C. Supply ±10% 50Hz | |||
| Optional | • Outer body is made of SS-304 grade • Digital temp. controller cum indicator • Microprocessor based PID controller • Stirrer can be provided at extra cost • S. Steel test tube racks 12mmdia x 24 holes,18mm dia x 18 holes |
|||
