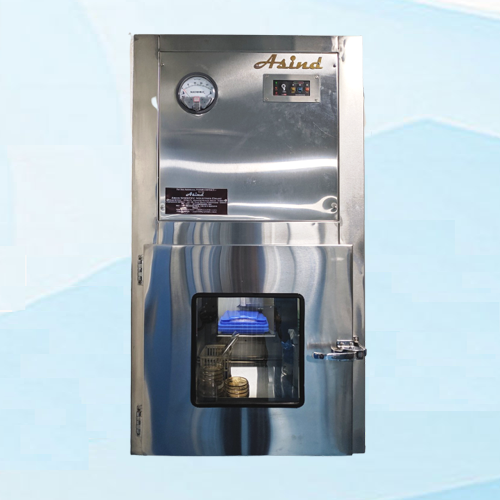

Dynamic Pass Box
Click to enlarge
HomeClean Room Equipments Dynamic Pass Box
Previous product
Vertical Laminar Air Flow
Vertical Laminar Air Flow
Back to products
Next product
Fume Hood
Fume Hood

Dynamic Pass Box

APPLICATIONS:-

  • Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs etc.



Category: Clean Room Equipments
Share
Facebook Twitter Pinterest linkedin Telegram
Add to Cart

  • Description
  • Reviews (0)
Description

DESCRIPTIONS:–

  • Pass box is one of the clean room systems, which is used to transfer materials from one side to other side through controlled environment in order to avoid airborne cross contamination. As the name states itself, the primary and only work of a pass boxis to pass material from one side to other without raising contamination concern and if any particulate matter presents on the material surface, it swipes away during the operation. Interlocking door mechanism is the prime feature of a pass box, when door at one side is open the door at other side remains closed. It is popular with other names such as clean room pass through, clean transfer window and transfer hatch; in addition, it is widely used in microbiology laboratories in food, pharmaceutical and chemical industries.

A pass box is designed in two different types; static and dynamic, it is the user specific requirement which  decides the right design configuration. The difference between these two is explained as:

  • Dynamic Pass Box equipment are made of powder coated high grades stainless steel (304 / 316 / 316 L) with international quality standard components including mechanically or electrically interlocked doors and UV light. These dynamic pass box equipment are equipped with suction filter made of stainless steel with 95% down to 5µ efficiency (EU-4rating) and supply filter made of aluminium with 99.999% down to 0.001 µ (EU-14 Rating.) An interlock guard system controls the inlet and the outlet of PASS BOX not be opened at the same time, in order to prevent the cross contamination.

TECHNICAL SPECIFICATIONS:-

Model No

ASI-DPB/S18 ASI-DPB/S24 ASI-DPB/S36

ASI-DPB/S48

Inner Dimensions (LxWxH)mm

450x450x450 600x600x600 900x900x600 1200x1200x600
Outer Dimensions

(LxWxH)mm

500x500x800 700x650x1100 1000x950x1100

1300x1250x1100

Design Type

Dynamic
Cleanliness Level

Class 100

Outer and Inner Body Made of :

Stainless Steel 304

Illumination

LED Tube Light
Air System  Motor-Blower with Suspension Arrangement

Filters

·  Pre filter (95% down to 5 micron)

·  HEPA filter (99.97%)

·  Protected by SS grills

Door

· Two Side Doors

· Glass Window

· SS Handle & SS Hinges

· Electromagnetic Interlocking System

Power Supply

220 Volts/50 Hz

Optional

· Made of SS 316/316 L

· Flange

· Test Certificate

· Mechanical Door Interlocking

· Door Buzzer

· UV Light Hour Meter

· Differential Pressure Gauge
