SPECIFICATIONS:-
- Opening mode: manual type

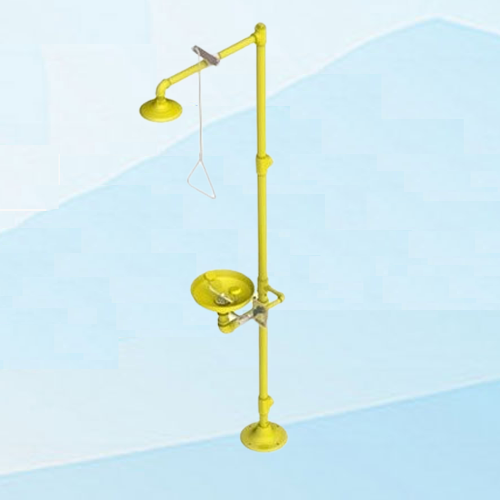

- Product type: compound double eye washer
- Hydraulic pressure: water pressure ≥ 0.25MpaG
- Material: 304 Stainless steel
- Sprinkler head spacing: 150-170mm
- Nominal pressure: 0.4MPA
- Sealing pressure: 0.45MPA
- Working pressure: 0.20~0.40MPA
- Height 2.3 m inlet and outlet size 1¼ wire
- Spray flow L/min: 12-18
- Eyewash flow L/min: ≥12
- Applicable conditions: normal temperature pure water or water standard.
- Performance: Super acid, alkali, salt, oil and other chemical substances corrosion.
Use: suitable for nuclear energy, petroleum, chemical, machinery manufacturing, automobile ship building, casting, painting, printing and dyeing, medicine, medical and other industries. - Features: emergency eye washing and body douche function.
- Production standard: ANS2Z358-12004 US standard.
FEATURES:-
1. Ball valves to control spray and wash eyes, respectively.
2. Easy to operate, fast opening and closing, reliable sealing.
3. The rinsing nozzle of the punching nozzle is a soft foam-like water stream, which improves the cleaning efficiency by 50% compared with ordinary eyewash nozzles.
4. Super chemical resistance to acids, alkalis, salts, oils, etc.
PRODUCT DETAILS:-
- Package Dimensions : 74.42 x 29.21 x 24.64 cm; 11.86 Kilograms
- Item Weight : 11 kg 900 g
- Stainless steel bowl, with cover, dustproof, double mouth.
- This model is made of 304 stainless steel with a thickened mounting bracket that can be mounted to a wall. The nozzle flow rate is 12L per minute, the water pressure requirement is 0.2-0.4mpa
- Ball valves to control spray and wash eyes, respectively. Easy to operate, fast opening and closing, reliable sealing.
- The rinsing nozzle of the punching nozzle is a soft foam-like water stream, which improves the cleaning efficiency by 50% compared with ordinary eyewash nozzles.
- Super chemical resistance to acids, alkalis, salts, oils, etc.
Asian specialized in laboratory equipment and tool.
