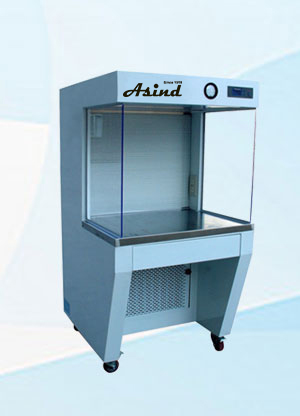

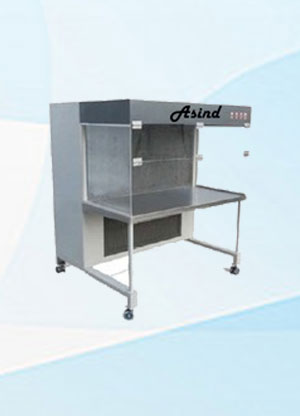

A cabinet is fabricated of wooden board laminated with sunmica & caster wheel for easy movement. Working table is made of Stainless Steel Sheet (SS-304 grade). Side panels and front doors are made up of durable & thick transparent flexi glass. Fitted with silent air blower to maintain uniform air circulation. Working area is fitted with Fluorescent light & UV Germicidal light having separate control in front.
SPECIFICATIONS & ORDERING INFORMATION:-
| Interior (ft) | 2’x2’x2 | 3’x 2’x2’ | 4’x2’x2’ | 6’x2’x2’ |
|---|---|---|---|---|
| No. of HEPA filter | 1 Nos | 1 Nos | 1-2 Nos | 2 Nos |
| Pre-filter | 1 Nos | 1 Nos | 1-2 Nos | 2 Nos |
| Qty. of fluorescent tube | 1 Nos | 1 Nos | 1-2 Nos | 2 Nos |
| No. of UV tube | 1 Nos | 1 Nos | 1 Nos | 1 Nos |
| Motor & Blower | 1 & 2 Blower | 1 & 2 Blower | 1 & 2 Blower | 1 & 2 Blower |
| Cleanliness | Class 100 | |||
| Velocity | 90 FPM ±20% | |||
| HEPA Filter | 99.999 % efficiency for particles >0.3 μm | |||
| Pre-Filter | 86 % efficiency for particles >0.5 μm (Washable) | |||
| Particle Count | US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions. | |||
| Cabinet | Laminated High Quality Wooden Board /PCRC Sheet Powder Coated/Stainless Steel SS 304 grade. | |||
| Work Table | SS-304 grade | |||
| Airflow Speed | Control Speed Controller (Three Step Speed Controller) | |||
| Blower | High efficient centrifugal type with lifetime lubricated bearings | |||
| Light | High intensity, low wattage >800 lux | |||
| Noise Level | 55 dBA | |||
| Standard Accessories | Air/gas cock and mains power socket (16A) | |||
| Power Supply | 220-230 V,50 Hz. | |||
| Optional Accessories | – Microprocessor LCD Controller – Digital display for air flow rate – Gauges Pressure (Statics Pressure Mano-Mater) – Magnahelic Gauge (for filter pressure) – U. V. Germicidal Tube in work area – Electronic Filter choke alarm – Spare HEPA Filters – Auto switch on/off for U.V. Germicidal tube & fluorescent light – Hour Meter for UV light – Spare HEPA Filters – Auto switch on/off for U.V. Germicidal tube & fluorescent light – Hour Meter for UV light |
|||
OPTION:-
- Digital temperature controller if required (On customer demand).
- Sunmica top instead of SS Top, AII SS Body on customer request.
