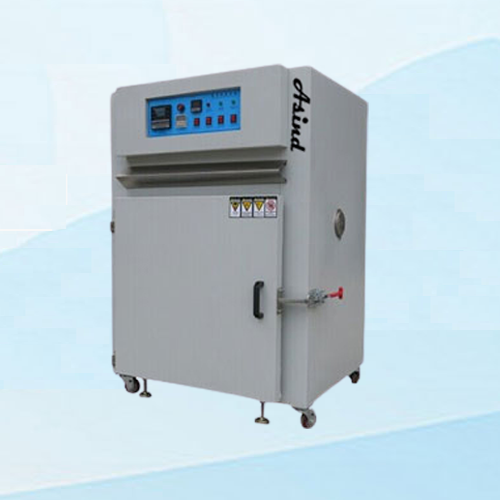

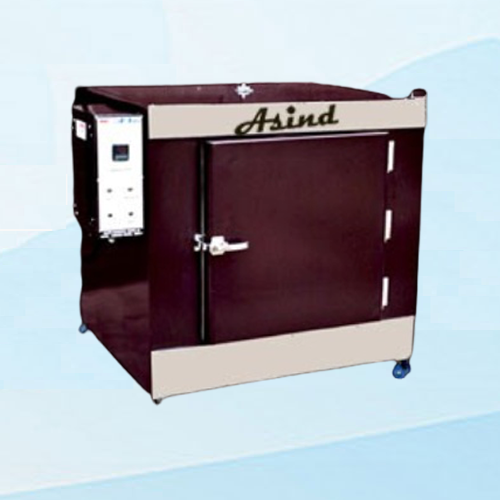

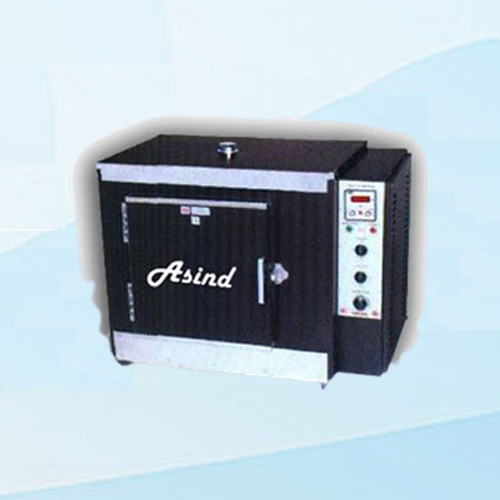

OVEN UNISERVAL ( HIGH TEMPERATURE)

Double walled made of thick anodized aluminum/SS Steel 304 grade and outer body is made up of MS Sheet furnished in durable powder coated. The gap of 3” diameter between two walled is filled with pure white glass wool.
Heating elements are placed in ribs at the bottom and sides. Adjustable air ventilators near the top of the sides built in horizontal ‘L’ shaped thermometer 0 to 250˚C in also provided. The temperature is controlled by BI-Metallic Hydraulic capillary thermostat from Ambient to 250˚C with a sensitivity of ±1˚C. Unique design of ventilation keeps the surface of the instrument from being burnt even when the instrument i.e. oven temperature maintained at above 200˚C.

Category: Uncategorized
Share
Facebook Twitter Pinterest linkedin Telegram
Add to Cart

  • Description
  • Reviews (0)
Description

APPLICATION:-

Sterilization & storage for pharmaceutical, agriculture, medical & food industries, education institute, Bio-tech, laboratory requiring controlled temperature above ambient.



TECHNICAL SPECIFICATION & ORDERING INFORMATION:-

Interior (mm) 300 X 300 X 300 350 X 350 X 350 450 X 450 X 450 605 X 605 X 605 605 X 605 X 900 605 X 450 X 900
Capacity (LTR) 28 45 95 224 336 252
Heater load 1.5KW 1.5KW 2.0 KW 3.0 KW 3.5 KW 3.0 KW
Shelves 2 2 2 2 3 3
Temp. Range Ambient to 300˚C
Type Force convection system.
Temp. Controller Microprocessor based PID temperature indicator cum controller with LED display.
Temp Accuracy ± 0.5˚C
Regulator SSR Temperature limiter with protective heat sink.
Safety Device Over Temperature limiter switch.
Power supply 220/230V,50Hz
Heater Kanthal A1 super quality coil shaped heater
Optional • Communication Port for PC Interface, complete with Communication cable.
• Double Colour Gate, top & control panel (On customer Demand/request).
